Eudemon-X防火墙LAN-to-LAN IPSec VPN

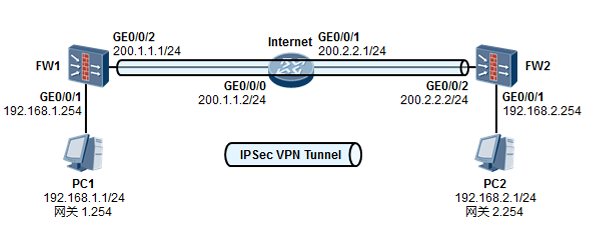

1.实验拓扑及描述

本实验中的防火墙为Eudemon-X系列防火墙；

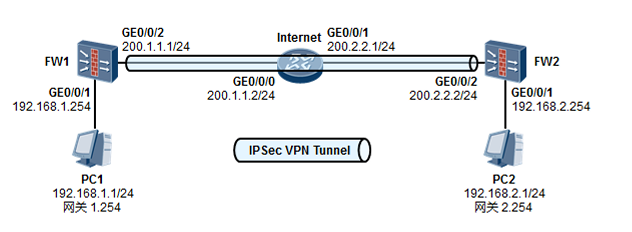

各设备的IP地址规划如图所示；
FW1的GE0/0/2口为untrust区域，GE0/0/1口为trust区域；FW2的GE0/0/2口为untrust区域， GE0/0/1口为trust区域。

2.实验需求

要求在FW1、FW2之间部署站点到站点的IPSecVPN，使得两个站点内网的PC：PC1及PC2能够安全的互相访问；PC1可以使用目的IP地址192.168.2.1来访问PC2，同理，PC2也可以使用PC1的真实IP地址来对其进行访问。

3.注意事项

由于IPSecVPN是建立在两台防火墙之上，因此要注意配置两台防火墙Local与Untrust的区域间安全策略，以FW1举例：

Local与Untrust区域间的outbound方向要放行源为200.1.1.1、目的为200.2.2.2的流量； Local与Untrust区域间的Inbound方向要放行源为200.2.2.2、目的为200.1.1.1的流量；必须放开上述流量，否则IPSecVPN隧道无法正常建立。

IPSecVPN隧道建立完成后，为了使得PC1与PC2能够互相访问，还需要在两台防火墙上配置 Trust与Untrust的域间策略，以FW1举例：

Trust与Untrust的outbound方向要放行源为192.168.1.0/24、目的为192.168.2.0/24的流量； Trust与Untrust的inbound方向要放行源为192.168.2.0/24、目的为192.168.1.0/24的流量。必须放开上述流量，否则PC1与PC2无法互访。

4.实现步骤及配置

FW1的配置如下

SHELL

FW2的配置如下：

SHELL

注意：在商业局点中部署IPSec VPN时，相关加密、哈希算法需采用更为安全、更为高级的算法。另外，在部署IPSecVPN时，隧道两端的防火墙必须使用完全相同的策略，包括加密算法、哈希算法、DH等等。完成配置后，可在两个PC之间相互执行ping操作，产生的流量将触发防火墙之间的IPSecVPN隧道协商。

Internet路由器的配置如下：

SHELL

[Internet] interface GigabitEthernet0/0/0
[Internet-GigabitEthernet0/0/0] ip address 200.1.1.2 255.255.255.0
[Internet] interface GigabitEthernet0/0/1
[Internet-GigabitEthernet0/0/1] ip address 200.2.2.1 255.255.255.0

完成配置后，PC1与PC2即可互相访问。在防火墙上做查看。使用display ike sa命令可查看IKE协商方式（本实验采用的方式）建立的安全联盟（SA）的相关信息：

SHELL

在上述输出中，flag列中的RD意为READY，表示此SA已建立成功。ST（STAYALIVE）：表示此端是通道协商发起方。

在防火墙上使用display ipsec sa可查看协商后所产生的IPSec安全联盟，这是非常关键的信息：

SHELL

在完成上述配置后，我们再考虑一个新增需求：FW1下挂的192.168.1.0/24的子网除了需要通过

IPSecVPN隧道访问PC2所在的网络，同时还需要访问Internet，该如何实现呢？首先要让192.168.1.0/24的子网用户能够访问Internet，那肯定是要部署源地址NAT的，我们这里做一个基于地址池的源地址NAT，地址池使用200.1.1.10到200.1.1.20这个区间。但是在部署的时候要注意，如果直接将NAT部署上去，就会影响到已经实施好的IPSecVPN，因为192.168.1.0/24访问192.168.2.0/24的流量也会被NAT执行源地址转换，这样一来数据包的源地址就发生了变更，而这在IPSecVPN看来就不是一个感兴趣的流量了（无法被ACL3000匹配），也就无法正常的进入 IPSecVPN隧道进行转发。

所以在IPSecVPN环境中部署NAT需格外注意。在我们这个场景中，部署NAT时，切记要将 192.168.1.0/24访问192.168.2.0/24的流量排除在NAT的范围之外。

FW1增加配置如下：

SHELL

如此一来，PC1即可以通过IPSecVPN隧道访问PC2，又能够直接访问Internet。

#配置接口IP地址：
[FW1] interface GigabitEthernet0/0/1
[FW1-GigabitEthernet0/0/1] ip address 192.168.1.254 255.255.255.0
[FW1] interface GigabitEthernet0/0/2
[FW1-GigabitEthernet0/0/2] ip address 200.1.1.1 255.255.255.0

#将接口关联到相应的安全域：
[FW1] firewall zone trust
[FW1-zone-trust] add interface GigabitEthernet0/0/1
[FW1] firewall zone untrust
[FW1-zone-untrust] add interface GigabitEthernet0/0/2

#配置默认路由：
[FW1] ip route-static 0.0.0.0 0.0.0.0 200.1.1.2

#定义IPSecVPN感兴趣数据流，使用ACL3000来匹配感兴趣流量：
[FW1] acl number 3000
[FW1-acl-adv-3000] rule permit ip source 192.168.1.0 0.0.0.255 destination
192.168.2.0 0.0.0.255
[FW1-acl-adv-3000] quit
#配置IKE Proposal，这是IKE阶段一的策略：
[FW1] ike proposal 10
[FW1-ike-proposal-10] authentication-method pre-share
[FW1-ike-proposal-10] authentication-algorithm sha1
[FW1-ike-proposal-10] encryption-algorithm 3des-cbc
[FW1-ike-proposal-10] quit
#配置IPsec proposal，这是IKE阶段二的策略：
[FW1] ipsec proposal myset
[FW1-ipsec-proposal-myset] transform esp
[FW1-ipsec-proposal-myset] esp authentication-algorithm sha1
[FW1-ipsec-proposal-myset] esp encryption-algorithm 3des
#配置IKE peer，定义预共享秘钥、关联IKE proposal并指定隧道对端防火墙的IP：
[FW1] ike peer fw2
[FW1-ike-peer-b] pre-shared-key huawei
[FW1-ike-peer-b] ike-proposal 10
[FW1-ike-peer-b] remote-address 200.2.2.2
#配置IPsec Policy：
[FW1] ipsec policy mymap 10 isakmp
[FW1-ipsec-policy-isakmp-mymap-10] security acl 3000
[FW1-ipsec-policy-isakmp-mymap-10] ike-peer fw2
[FW1-ipsec-policy-isakmp-mymap-10] proposal myset
#应用IPsec Policy到接口：
[FW1] interface GigabitEthernet0/0/2
[FW1-GigabitEthernet0/0/2] ipsec policy mymap

#放开FW1发送往FW2的IPSecVPN协商流量：
[FW1] policy interzone local untrust outbound
[FW1-policy-interzone-local-untrust-outbound] policy 10
[FW1-policy-interzone-local-untrust-outbound-10] policy destination 200.2.2.2 0
[FW1-policy-interzone-local-untrust-outbound-10] action permit
#放开FW2发送过来的IPSecVPN协商流量：
[FW1] policy interzone local untrust inbound
[FW1-policy-interzone-local-untrust-inbound] policy 10
[FW1-policy-interzone-local-untrust-inbound-10] policy source 200.2.2.2 0
[FW1-policy-interzone-local-untrust-inbound-10] action permit
#放开对端站点内网访问本地站点内网的流量：
[FW1] policy interzone trust untrust inbound
[FW1-policy-interzone-trust-untrust-inbound] policy 10
[FW1-policy-interzone-trust-untrust-inbound-10] policy source 192.168.2.0
0.0.0.255
[FW1-policy-interzone-trust-untrust-inbound-10] policy destination 192.168.1.0
0.0.0.255
[FW1-policy-interzone-trust-untrust-inbound-10] action permit
#放开本地站点内网到对端站点内网的流量：
[FW1] policy interzone trust untrust outbound
[FW1-policy-interzone-trust-untrust-outbound] policy 10
[FW1-policy-interzone-trust-untrust-outbound-10] policy source 192.168.1.0
0.0.0.255
[FW1-policy-interzone-trust-untrust-outbound-10] policy destination 192.168.2.0
0.0.0.255
[FW1-policy-interzone-trust-untrust-outbound-10] action permit

[FW2] interface GigabitEthernet0/0/1
[FW2-GigabitEthernet0/0/1] ip address 192.168.2.254 255.255.255.0
[FW2] interface GigabitEthernet0/0/2
[FW2-GigabitEthernet0/0/2] ip address 200.2.2.2 255.255.255.0

[FW2] firewall zone trust
[FW2-zone-trust] add interface GigabitEthernet0/0/1
[FW2] firewall zone untrust
[FW2-zone-untrust] add interface GigabitEthernet0/0/2

[FW2] ip route-static 0.0.0.0 0.0.0.0 200.2.2.1

#定义IPSecVPN感兴趣数据流，使用ACL3000来匹配感兴趣流量：
[FW2] acl number 3000
[FW2-acl-adv-3000] rule permit ip source 192.168.2.0 0.0.0.255 destination
192.168.1.0 0.0.0.255
[FW2-acl-adv-3000] quit
#配置IKE Proposal，这是IKE阶段一的策略：
[FW2] ike proposal 10
[FW2-ike-proposal-10] authentication-method pre-share
[FW2-ike-proposal-10] authentication-algorithm sha1
[FW2-ike-proposal-10] encryption-algorithm 3des-cbc
[FW2-ike-proposal-10] quit
#配置IPsec proposal，这是IKE阶段二的策略：
[FW2] ipsec proposal myset
[FW2-ipsec-proposal-myset] transform esp
[FW2-ipsec-proposal-myset] esp authentication-algorithm sha1
[FW2-ipsec-proposal-myset] esp encryption-algorithm 3des
#配置IKE peer，定义预共享秘钥、关联IKE proposal并指定隧道对端防火墙的IP：
[FW2] ike peer fw1
[FW2-ike-peer-a] pre-shared-key huawei
[FW2-ike-peer-a] ike-proposal 10
[FW2-ike-peer-a] remote-address 200.1.1.1
#配置IPsec Policy：
[FW2] ipsec policy mymap 10 isakmp
[FW2-ipsec-policy-isakmp-mymap-10] security acl 3000
[FW2-ipsec-policy-isakmp-mymap-10] ike-peer fw1
[FW2-ipsec-policy-isakmp-mymap-10] proposal myset
#应用IPsec Policy到接口：
[FW2] interface GigabitEthernet0/0/2
[FW2-GigabitEthernet0/0/2] ipsec policy mymap
#放开防火墙发送给FW2的IPSecVPN协商流量：
[FW2] policy interzone local untrust outbound
[FW2-policy-interzone-local-untrust-outbound] policy 10
[FW2-policy-interzone-local-untrust-outbound-10] policy destination 200.1.1.1 0
[FW2-policy-interzone-local-untrust-outbound-10] action permit
#放开FW2发送过来的IPSecVPN协商流量：
[FW2] policy interzone local untrust inbound
[FW2-policy-interzone-local-untrust-inbound] policy 10
[FW2-policy-interzone-local-untrust-inbound-10] policy source 200.1.1.1 0
[FW2-policy-interzone-local-untrust-inbound-10] action permit
#放开对端站点内网访问本地站点内网的流量：
[FW2] policy interzone trust untrust inbound
[FW2-policy-interzone-trust-untrust-inbound] policy 10
[FW2-policy-interzone-trust-untrust-inbound-10] policy source 192.168.1.0
0.0.0.255
[FW2-policy-interzone-trust-untrust-inbound-10] policy destination 192.168.2.0
0.0.0.255
[FW2-policy-interzone-trust-untrust-inbound-10] action permit
#放开本地站点内网到对端站点内网的流量：
[FW2] policy interzone trust untrust outbound
[FW2-policy-interzone-trust-untrust-outbound] policy 10
[FW2-policy-interzone-trust-untrust-outbound-10] policy source 192.168.2.0
0.0.0.255
[FW2-policy-interzone-trust-untrust-outbound-10] policy destination 192.168.1.0
0.0.0.255
[FW2-policy-interzone-trust-untrust-outbound-10] action permit

[FW1] display ike sa
current ike sa number: 2 -----------------------------------------------------------------------------
conn-id     peer           flag     phase  vpn -----------------------------------------------------------------------------
40001       200.2.2.2   RD|ST     v2:2   public
1           200.2.2.2    RD|ST    v2:1   public
  flag meaning
  RD--READY    ST--STAYALIVE  RL--REPLACED      FD--FADING
  TO--TIMEOUT  TD--DELETING   NEG--NEGOTIATING  D--DPD

[FW1]display ipsec sa
===============================
Interface: GigabitEthernet0/0/2
    path MTU: 1500
===============================
  -----------------------------
  IPsec policy name: "mymap"
  sequence number: 10
  mode: isakmp
  vpn: public
  -----------------------------
    connection id: 40001
    rule number: 5
    encapsulation mode: tunnel
    holding time: 0d 0h 6m 9s
    tunnel local : 200.1.1.1    tunnel remote: 200.2.2.2
    flow      source: 192.168.1.0-192.168.1.255 0-65535 0
    flow destination: 192.168.2.0-192.168.2.255 0-65535 0

    [inbound ESP SAs]
      spi: 3796720173 (0xe24d5a2d)
      vpn: public  said: 0  cpuid: 0x0000
      proposal: ESP-ENCRYPT-3DES ESP-AUTH-SHA1
      sa remaining key duration (bytes/sec): 1887436560/3231
      max received sequence-number: 4
      udp encapsulation used for nat traversal: N

    [outbound ESP SAs]
      spi: 2146809471 (0x7ff5b67f)
      vpn: public  said: 1  cpuid: 0x0000
      proposal: ESP-ENCRYPT-3DES ESP-AUTH-SHA1
      sa remaining key duration (bytes/sec): 1887436500/3231
      max sent sequence-number: 6
      udp encapsulation used for nat traversal: N

#配置NAT地址池：
[FW1] nat address-group 1 200.1.1.10 200.1.1.20

#配置NAT策略，其中policy 10用于匹配192.168.1.0/24到192.168.2.0/24的流量，注意，这里执行的
动作必须是no-nat，因为这些流量是不能被NAT的，否则就不满足IPsec VPN受保护流量的条件了。policy
20用于匹配192.168.1.0/24访问Internet的流量，这些流量需做源地址转换，使用nat地址池1：
[FW1] nat-policy interzone trust untrust outbound
[FW1-nat-policy-interzone-trust-untrust-outbound] policy 10
[FW1-nat-policy-interzone-trust-untrust-outbound-10] policy source 192.168.1.0
0.0.0.255
[FW1-nat-policy-interzone-trust-untrust-outbound-10] policy destination
192.168.2.0 0.0.0.255
[FW1-nat-policy-interzone-trust-untrust-outbound-10] action no-nat
[FW1-nat-policy-interzone-trust-untrust-outbound-10] quit

[FW1-nat-policy-interzone-trust-untrust-outbound] policy 20
[FW1-nat-policy-interzone-trust-untrust-outbound-20] policy source 192.168.1.0
0.0.0.255
[FW1-nat-policy-interzone-trust-untrust-outbound-20] address-group 1
[FW1-nat-policy-interzone-trust-untrust-outbound-20] action source-nat

#修改Trust到Untrust的区域间安全策略，使得内网用户能够访问Internet：
[FW1] policy interzone trust untrust outbound
[FW1-policy-interzone-trust-untrust-outbound] policy 20
[FW1-policy-interzone-trust-untrust-outbound-20] policy source 192.168.1.0
0.0.0.255
[FW1-policy-interzone-trust-untrust-outbound-20] action permit
