Ubuntu 23.04部署K8S集群

基于containerd容器运行时部署k8s 1.28集群

一.K8S集群主机准备

1.1 主机操作系统说明

序号	操作系统及版本	备注
1	Ubuntu 23.04

1.2 主机硬件配置说明

需求	CPU	内存	硬盘	角色	主机名
值	8C	8G	1024GB	master	k8s-master01
值	8C	16G	1024GB	worker(node)	k8s-worker01
值	8C	16G	1024GB	worker(node)	k8s-worker02

1.3 主机配置

1.3.1 主机名配置

由于本次使用3台主机完成kubernetes集群部署，其中1台为master节点,名称为k8s-master01;其中2台为worker节点，名称分别为：k8s-worker01及k8s-worker02

POWERSHELL

master节点
# hostnamectl set-hostname k8s-master01

POWERSHELL

worker01节点
# hostnamectl set-hostname k8s-worker01

POWERSHELL

worker02节点
# hostnamectl set-hostname k8s-worker02

1.3.2 主机IP地址配置

POWERSHELL

1.3.3 主机名与IP地址解析

所有集群主机均需要进行配置。

POWERSHELL

1.3.4 时间同步配置

POWERSHELL

查看时间

POWERSHELL

更换时区
# timedatectl set-timezone Asia/Shanghai

POWERSHELL

再次查看时间

POWERSHELL

安装ntpdate命令
# apt install ntpdate

POWERSHELL

使用ntpdate命令同步时间
# ntpdate time1.aliyun.com

POWERSHELL

1.3.5 配置内核转发及网桥过滤

所有主机均需要操作。

POWERSHELL

# cat << EOF | tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

POWERSHELL

# modprobe overlay
# modprobe br_netfilter

POWERSHELL

加载内核参数
# sysctl --system

1.3.6 安装ipset及ipvsadm

所有主机均需要操作。

POWERSHELL

安装ipset及ipvsadm
# apt install ipset ipvsadm

POWERSHELL

# sh ipvs.sh

1.3.7 关闭SWAP分区

修改完成后需要重启操作系统，如不重启，可临时关闭，命令为swapoff -a

POWERSHELL

二.K8S集群容器运行时 Containerd准备

2.1 Containerd部署文件获取

POWERSHELL

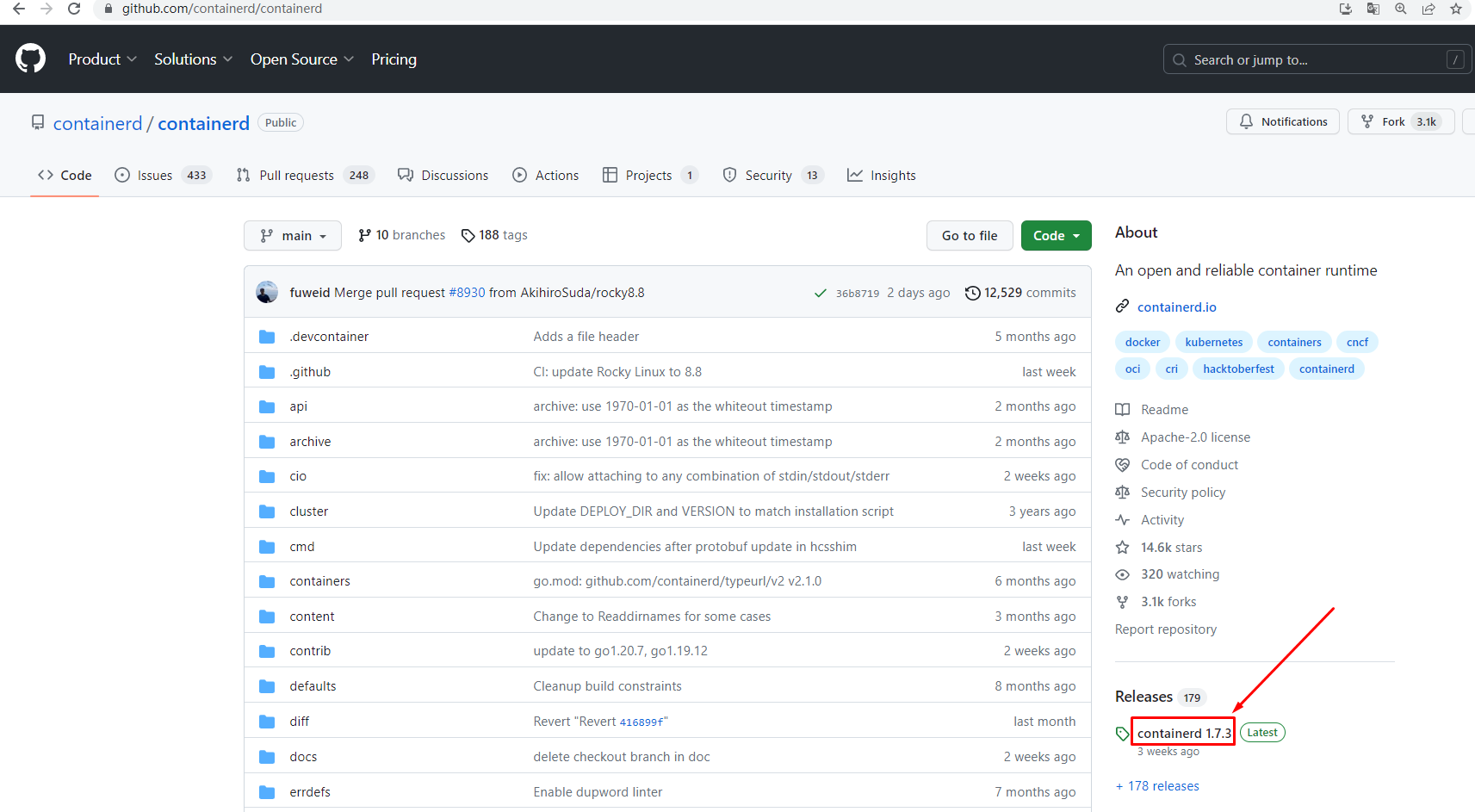

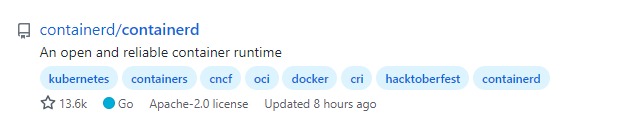

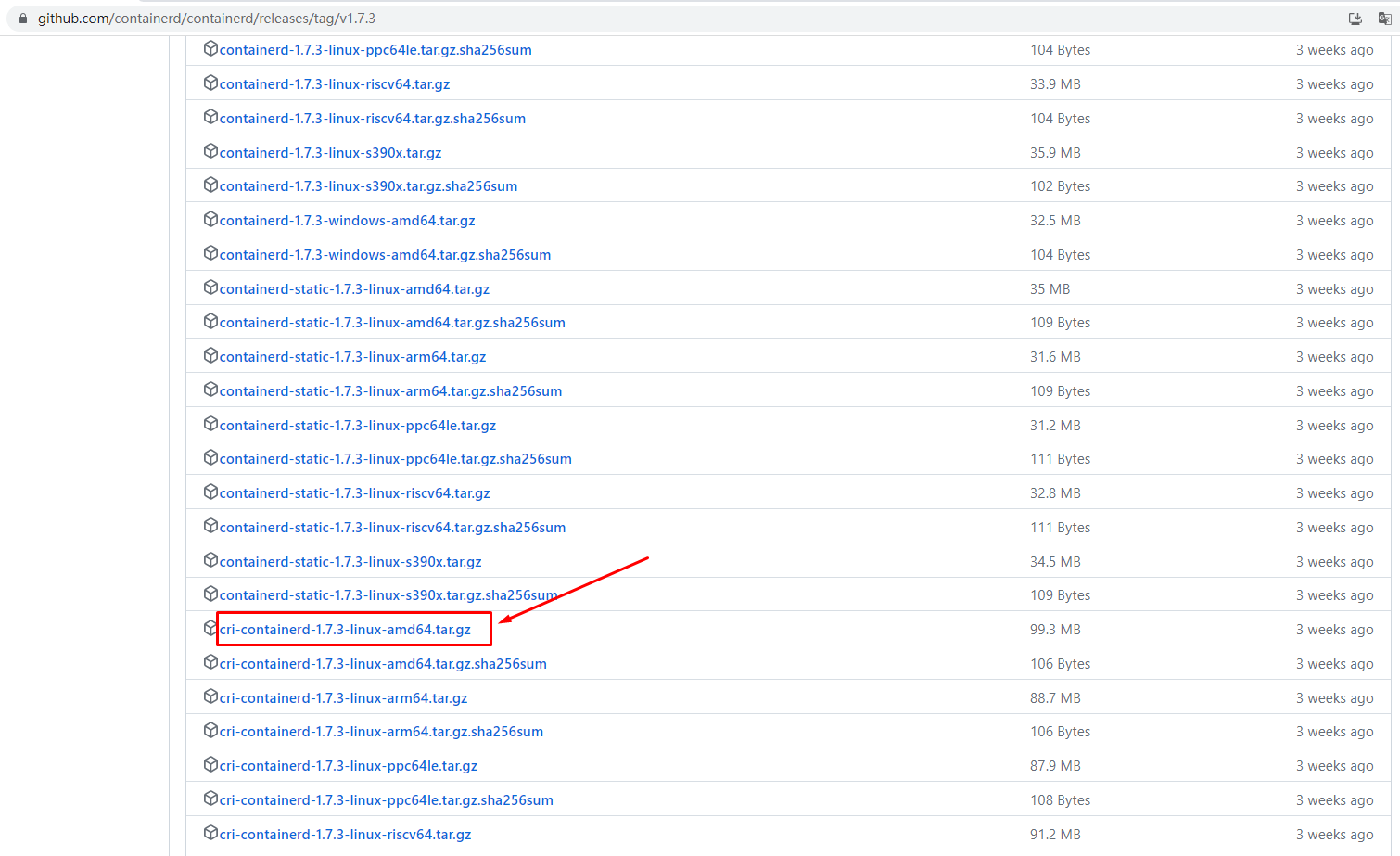

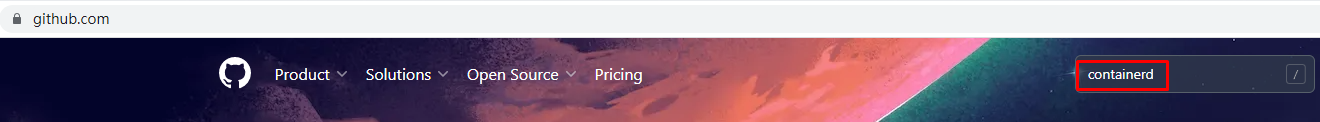

# wget https://github.com/containerd/containerd/releases/download/v1.7.5/cri-containerd-1.7.5-linux-amd64.tar.gz

POWERSHELL

# tar xf cri-containerd-1.7.5-linux-amd64.tar.gz  -C /

2.2 Containerd配置文件生成并修改

POWERSHELL

# mkdir /etc/containerd

POWERSHELL

# containerd config default > /etc/containerd/config.toml

POWERSHELL

修改第65行
# vim /etc/containerd/config.toml

sandbox_image = "registry.k8s.io/pause:3.9" 由3.8修改为3.

POWERSHELL

修改第137行
# vim /etc/containerd/config.toml

SystemdCgroup = true 由false修改为true

2.3 Containerd启动及开机自启动

POWERSHELL

# systemctl enable --now containerd

POWERSHELL

验证其版本
# containerd --version

三.K8S集群部署

3.1 K8S集群软件apt源准备

阿里云提供apt源

POWERSHELL

# echo "deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main"  | sudo tee /etc/apt/sources.list.d/kubernetes.list

POWERSHELL

# sudo apt-get update

POWERSHELL

将公钥添加至服务器
# apt-key adv --recv-keys --keyserver keyserver.ubuntu.com B53DC80D13EDEF05

POWERSHELL

再次更新
# apt-get update

3.2 K8S集群软件安装

所有节点均可安装

POWERSHELL

默认安装
# apt install  kubeadm  kubelet kubectl

POWERSHELL

安装指定版本
# apt install  kubeadm=1.28.1-00  kubelet=1.28.1-00 kubectl=1.28.1-00

POWERSHELL

锁定软件版本
# apt-mark hold kubelet kubeadm kubectl

3.3 K8S集群初始化

POWERSHELL

root@k8s-master01:~# kubeadm config print init-defaults > kubeadm-config.yaml

POWERSHELL

root@k8s-master01:~# kubeadm init --config kubeadm-config.yaml

POWERSHELL

3.4 准备kubectl配置文件

仅在k8s-master节点上进行操作。

POWERSHELL

3.5 工作节点加入集群

POWERSHELL

3.6 验证K8S集群节点是否可用

POWERSHELL

四.K8S集群网络插件calico部署

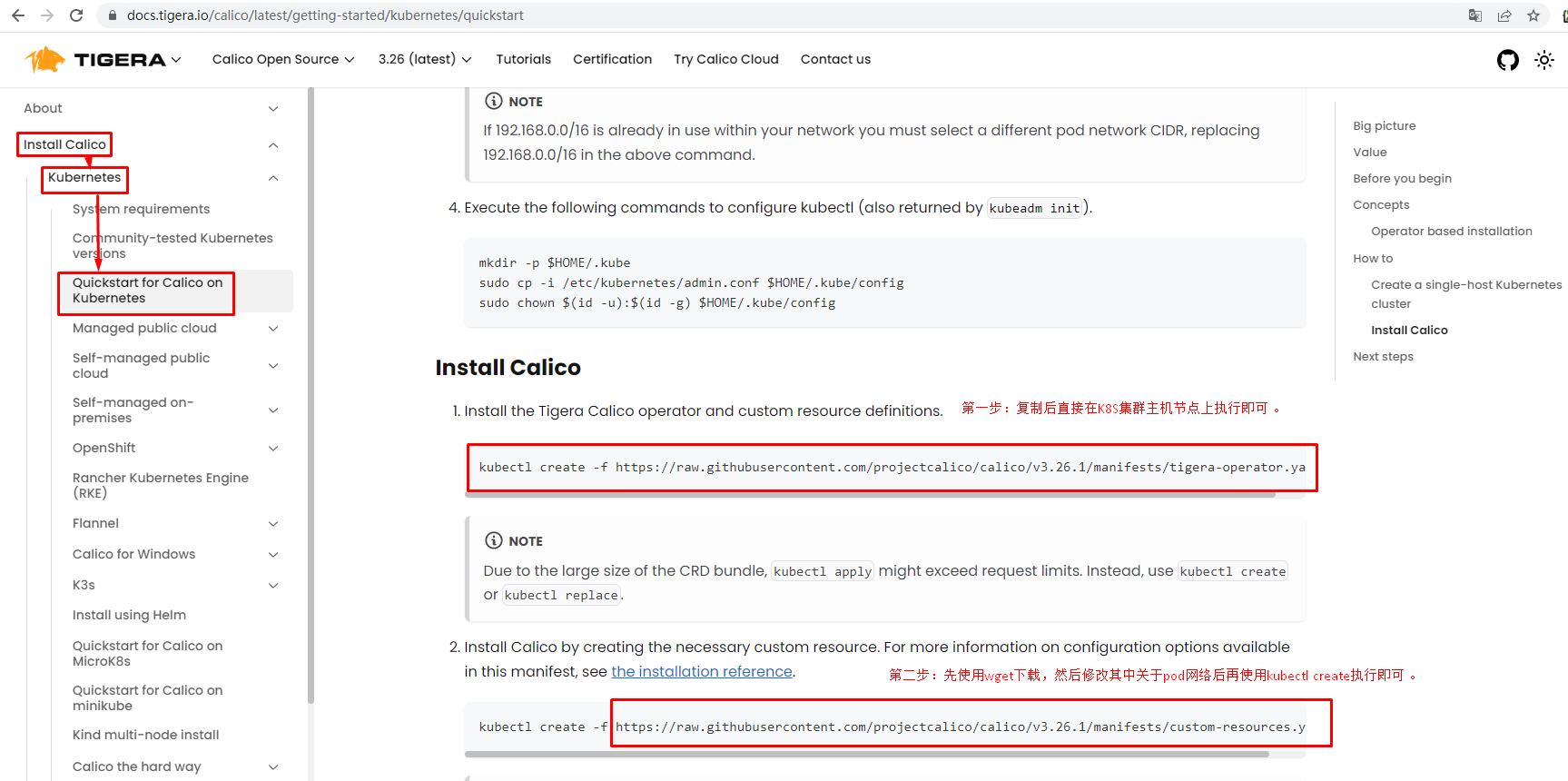

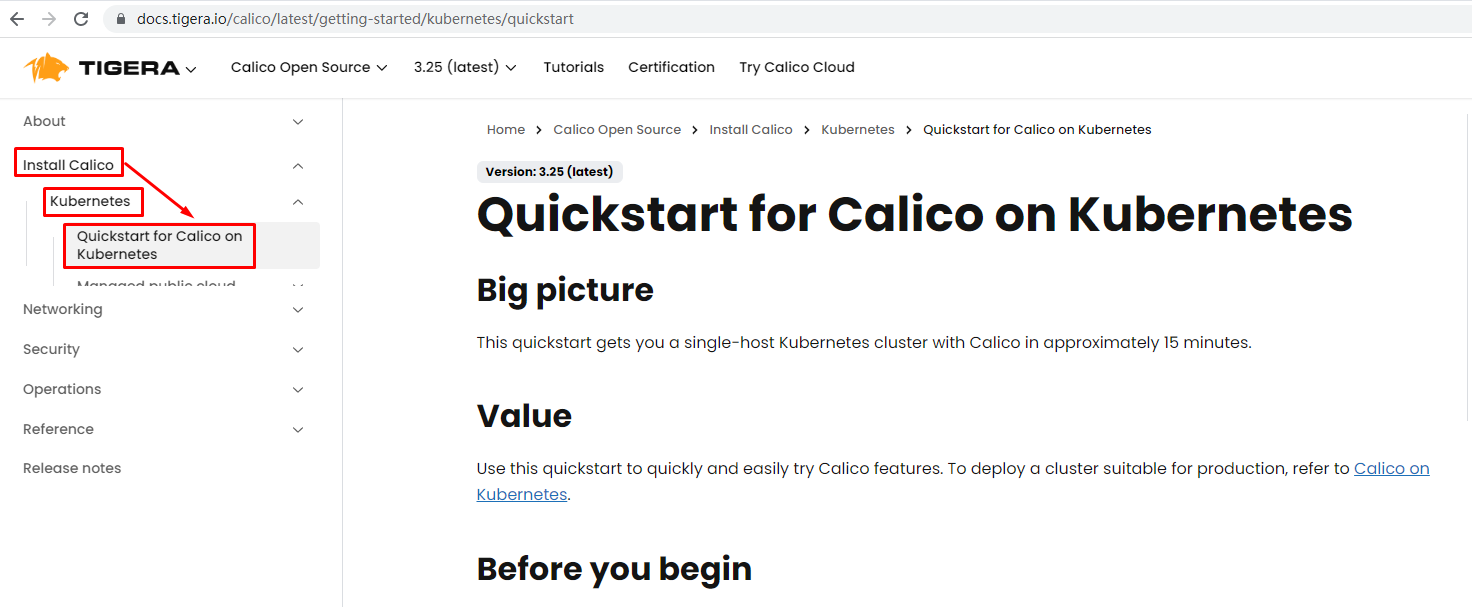

calico访问链接：https://projectcalico.docs.tigera.io/about/about-calico

POWERSHELL

root@k8s-master01:~# kubectl create -f https://raw.githubusercontent.com/projectcalico/calico/v3.26.1/manifests/tigera-operator.yaml

POWERSHELL

# wget https://raw.githubusercontent.com/projectcalico/calico/v3.26.1/manifests/custom-resources.yaml

POWERSHELL

# kubectl create -f custom-resources.yaml

POWERSHELL

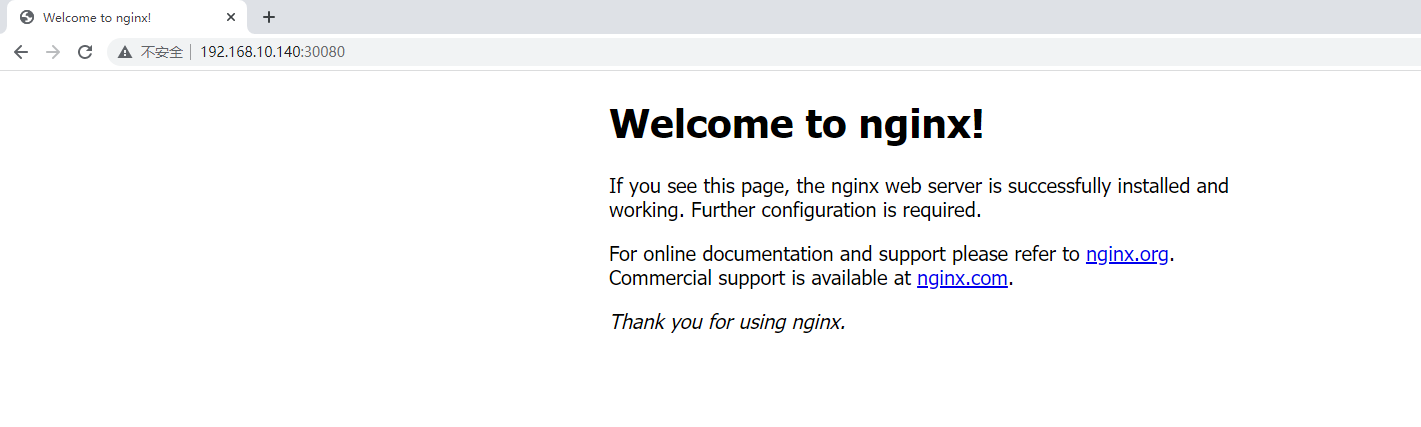

五.部署Nginx应用验证K8S集群可用性

POWERSHELL

k8s-master01节点IP地址为：192.168.10.140/24
root@k8s-master01:~# vim /etc/netplan/01-network-manager-all.yaml
root@k8s-master01:~# cat /etc/netplan/01-network-manager-all.yaml
network:
  version: 2
  renderer: networkd
  ethernets:
    ens33:
      dhcp4: no
      addresses:
        - 192.168.10.140/24
      routes:
        - to: default
          via: 192.168.10.2
      nameservers:
        addresses: [119.29.29.29,114.114.114.114,8.8.8.8]

k8s-worker01节点IP地址为：192.168.10.141/24
root@k8s-worker01:~# vim /etc/netplan/01-network-manager-all.yaml
root@k8s-worker01:~# cat /etc/netplan/01-network-manager-all.yaml
network:
  version: 2
  renderer: networkd
  ethernets:
    ens33:
      dhcp4: no
      addresses:
        - 192.168.10.141/24
      routes:
        - to: default
          via: 192.168.10.2
      nameservers:
        addresses: [119.29.29.29,114.114.114.114,8.8.8.8]

k8s-worker02节点IP地址为：192.168.10.142/24
root@k8s-worker02:~# vim /etc/netplan/01-network-manager-all.yaml
root@k8s-worker02:~# cat /etc/netplan/01-network-manager-all.yaml
network:
  version: 2
  renderer: networkd
  ethernets:
    ens33:
      dhcp4: no
      addresses:
        - 192.168.10.142/24
      routes:
        - to: default
          via: 192.168.10.2
      nameservers:
        addresses: [119.29.29.29,114.114.114.114,8.8.8.8]

# cat >> /etc/hosts << EOF
192.168.10.140 k8s-master01
192.168.10.141 k8s-worker01
192.168.10.142 k8s-worker02
EOF

通过计划任务实现时间同步
# crontab -e
no crontab for root - using an empty one

Select an editor.  To change later, run 'select-editor'.
  1. /bin/nano        <---- easiest
  2. /usr/bin/vim.basic
  3. /usr/bin/vim.tiny
  4. /bin/ed

Choose 1-4 [1]: 2

......
0 */1 * * * ntpdate time1.aliyun.com


# crontab -l
......
0 */1 * * * ntpdate time1.aliyun.com

# lsmod | egrep "overlay"
overlay               151552  0

# lsmod | egrep "br_netfilter"
br_netfilter           32768  0
bridge                307200  1 br_netfilter

添加网桥过滤及内核转发配置文件
# cat << EOF| tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

配置ipvsadm模块加载
添加需要加载的模块
# cat << EOF | tee /etc/modules-load.d/ipvs.conf
ip_vs
ip_vs_rr
ip_vs_wrr
ip_vs_sh
nf_conntrack
EOF

# cat << EOF | tee ipvs.sh
#!/bin/sh
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
EOF

永远关闭swap分区，需要重启操作系统
# vim /etc/fstab
# cat /etc/fstab
......

#/swap.img      none    swap    sw      0       0

在上一行中行首添加#

报错如下，主要因为没有公钥：
Err:5 https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial InRelease
  The following signatures couldn't be verified because the public key is not available: NO_PUBKEY B53DC80D13EDEF05
Reading package lists... Done
W: GPG error: https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial InRelease: The following signatures couldn't be verified because the public key is not available: NO_PUBKEY B53DC80D13EDEF05
E: The repository 'https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial InRelease' is not signed.

查看可以软件列表
# apt-cache madison kubeadm
   kubeadm |  1.28.1-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
   kubeadm |  1.28.0-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
   kubeadm |  1.27.5-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
   kubeadm |  1.27.4-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
   kubeadm |  1.27.3-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
   kubeadm |  1.27.2-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
   kubeadm |  1.27.1-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages

root@k8s-master01:~# kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"28", GitVersion:"v1.28.1", GitCommit:"8dc49c4b984b897d423aab4971090e1879eb4f23", GitTreeState:"clean", BuildDate:"2023-08-24T11:21:51Z", GoVersion:"go1.20.7", Compiler:"gc", Platform:"linux/amd64"}

root@k8s-master01:~# vim kubeadm-config.yaml
root@k8s-master01:~# cat kubeadm-config.yaml
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 192.168.10.140
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/containerd/containerd.sock
  imagePullPolicy: IfNotPresent
  name: k8s-master01
  taints: null
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.k8s.io
kind: ClusterConfiguration
kubernetesVersion: 1.28.1
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
  podSubnet: 10.244.0.0/16
scheduler: {}
---
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
cgroupDriver: systemd

root@k8s-master01:~# kubeadm config images list

registry.k8s.io/kube-apiserver:v1.28.1
registry.k8s.io/kube-controller-manager:v1.28.1
registry.k8s.io/kube-scheduler:v1.28.1
registry.k8s.io/kube-proxy:v1.28.1
registry.k8s.io/pause:3.9
registry.k8s.io/etcd:3.5.9-0
registry.k8s.io/coredns/coredns:v1.10.1

root@k8s-master01:~# kubeadm config images pull

[config/images] Pulled registry.k8s.io/kube-apiserver:v1.28.1
[config/images] Pulled registry.k8s.io/kube-controller-manager:v1.28.1
[config/images] Pulled registry.k8s.io/kube-scheduler:v1.28.1
[config/images] Pulled registry.k8s.io/kube-proxy:v1.28.1
[config/images] Pulled registry.k8s.io/pause:3.9
[config/images] Pulled registry.k8s.io/etcd:3.5.9-0
[config/images] Pulled registry.k8s.io/coredns/coredns:v1.10.1

输出内容如下：
[init] Using Kubernetes version: v1.28.1
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k8s-master01 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

root@k8s-worker01:~# kubeadm join 192.168.10.140:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:aaad3eab474066ad6e2c9ee2a59fe275e083578648f8cdecedc6c2d1ee321869

root@k8s-worker02:~# kubeadm join 192.168.10.140:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:aaad3eab474066ad6e2c9ee2a59fe275e083578648f8cdecedc6c2d1ee321869

root@k8s-master01:~# kubectl get nodes
NAME           STATUS     ROLES           AGE     VERSION
k8s-master01   NotReady   control-plane   6m39s   v1.28.1
k8s-worker01   NotReady   <none>          2m24s   v1.28.1
k8s-worker02   NotReady   <none>          2m22s   v1.28.1

root@k8s-master01:~# kubectl get pods -n kube-system
NAME                                   READY   STATUS    RESTARTS        AGE
coredns-5dd5756b68-6btlz               0/1     Pending   0               26m
coredns-5dd5756b68-dxnrm               0/1     Pending   0               26m
etcd-k8s-master01                      1/1     Running   5 (16m ago)     27m
kube-apiserver-k8s-master01            1/1     Running   7 (11m ago)     26m
kube-controller-manager-k8s-master01   1/1     Running   8 (12m ago)     26m
kube-proxy-bh5sz                       1/1     Running   8 (9m41s ago)   26m
kube-proxy-lzqz4                       1/1     Running   7 (7m7s ago)    23m
kube-proxy-mhp82                       1/1     Running   7 (8m24s ago)   23m
kube-scheduler-k8s-master01            1/1     Running   6 (16m ago)     27m

输出内容：
namespace/tigera-operator created
customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgpfilters.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/caliconodestatuses.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipreservations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/apiservers.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/imagesets.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/installations.operator.tigera.io created
customresourcedefinition.apiextensions.k8s.io/tigerastatuses.operator.tigera.io created
serviceaccount/tigera-operator created
clusterrole.rbac.authorization.k8s.io/tigera-operator created
clusterrolebinding.rbac.authorization.k8s.io/tigera-operator created
deployment.apps/tigera-operator created

# vim custom-resources.yaml


# cat custom-resources.yaml


# This section includes base Calico installation configuration.
# For more information, see: https://projectcalico.docs.tigera.io/master/reference/installation/api#operator.tigera.io/v1.Installation
apiVersion: operator.tigera.io/v1
kind: Installation
metadata:
  name: default
spec:
  # Configures Calico networking.
  calicoNetwork:
    # Note: The ipPools section cannot be modified post-install.
    ipPools:
    - blockSize: 26
      cidr: 10.244.0.0/16 修改此行内容为初始化时定义的pod network cidr
      encapsulation: VXLANCrossSubnet
      natOutgoing: Enabled
      nodeSelector: all()

---

# This section configures the Calico API server.
# For more information, see: https://projectcalico.docs.tigera.io/master/reference/installation/api#operator.tigera.io/v1.APIServer
apiVersion: operator.tigera.io/v1
kind: APIServer
metadata:
  name: default
spec: {}

root@k8s-master01:~# kubectl get pods -n calico-system
NAME                                       READY   STATUS    RESTARTS   AGE
calico-kube-controllers-76bbb9b96b-rvdrd   1/1     Running   0          15m
calico-node-cp5xf                          1/1     Running   0          15m
calico-node-tv27t                          1/1     Running   0          15m
calico-node-x2c4p                          1/1     Running   0          15m
calico-typha-65c8d59447-ldfbp              1/1     Running   0          14m
calico-typha-65c8d59447-zlcjt              1/1     Running   0          15m
csi-node-driver-2zr9w                      2/2     Running   0          15m
csi-node-driver-5zvzq                      2/2     Running   0          15m
csi-node-driver-bs5b2                      2/2     Running   0          15m

root@k8s-master01:~# vim nginx.yaml
root@k8s-master01:~# cat nginx.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginxweb
spec:
  selector:
    matchLabels:
      app: nginxweb1
  replicas: 2
  template:
    metadata:
      labels:
        app: nginxweb1
    spec:
      containers:
      - name: nginxwebc
        image: nginx:latest
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80

---

apiVersion: v1
kind: Service
metadata:
  name: nginxweb-service
spec:
  externalTrafficPolicy: Cluster
  selector:
    app: nginxweb1
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
    nodePort: 30080
  type: NodePort

root@k8s-master01:~# kubectl apply -f nginx.yaml
deployment.apps/nginxweb created
service/nginxweb-service created
